Product Details:
Payment & Shipping Terms:
|
| Maintenance: | Easy Access And Maintenance Design | Service: | 24/7 Technical Support And Maintenance |
|---|---|---|---|
| Strip Width: | 500-2000 Mm | Product Type: | Continuous Pickling Line |
| Application: | Steel Strip Pickling | Environmental Protection: | Closed-loop Pickling System |
| Strip Thickness: | 0.5-6.0 Mm | Pickling Speed: | Up To 200 M/min |
| Capacity: | Up To 1,500,000 Tons Per Year | Acid Regeneration Efficiency: | Up To 98% |
| Automation Level: | Fully Automated Control System | ||
| Highlight: | 180 m/min push pull pickling line,180 m/min push pickling line,lower consumption push pickling line |
||

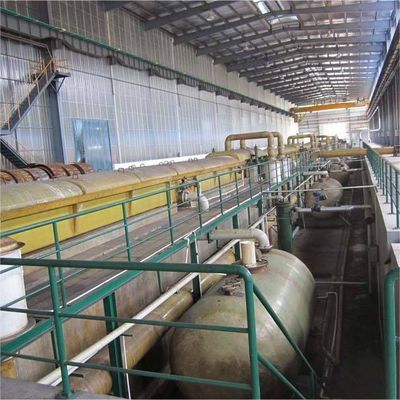

Push Pull Pickling Line With Lower Consumption Easier Operation And Fewer Malfunctions
A Layer of brittle and hard ferric oxide will form on the surface of the steel strip during the hot rolling,and the ferric oxide layer will affect the surface quality of the strip during cold rolling. Pickling process is ap-plied for removing the ferric oxide. The pickling line is divided into Push-pull Pickling Line(Semi-continuous Pickling Line) and continuous pickling line.
Push-pull Pickling Line
Push-pull Pickling Line is a semi-continuous production line.It is character-istic with lower consumption,easier operation and fewer malfunctions, moreover it can pickle many kinds of incoming material.
Production line process
Pay-off reel→9 roll leveller→hydraulie shear→angle cut shear→pickling tank→cleaning tank→hot air dryer→exit Loop→deflector→disc shear→bridle roll→turning roll for oil coating→tension reel.
| Strip Thickness | 0.3-6.0 mm |
| Strip Width | Up to 1,850 mm |
| Automation Level | Fully automated |
| Pickling Speed | Up to 180 m/min |
| Condition | new |
